Determination of Elemental Composition of Marcellus Shale Rocks by LIBS

Drs. Jinesh Jain and Dustin McIntyre of NETL use Applied Spectra's J200 LIBS instrument for rapid elemental analysis of Marcellus shale rocks — resolving Al, Ca, K, Ti, Na, Mg, Si, and total carbon for shale gas and CO2 storage research.

By Jinesh Jain and Dustin McIntyre, National Energy Technology Laboratory · GeoChemistry

Exploration of shale oil has received tremendous interest in recent years as the discovery for an alternate oil and natural gas source intensifies. The elemental analysis for shale samples during the exploration stage is essential to assess the cost of the extraction and the quality of oil and natural gas, and to control waste products. In the blog piece below, Drs. Jinesh Jain and Dustin McIntyre from NETL (National Energy Technology Laboratory) discuss using LIBS (Laser-Induced Breakdown Spectroscopy) to perform rapid elemental analysis for shale samples. More detailed technical discussion of this research was published in Spectrochimica Acta Part B 122 (2016) 9–14.

The organic-rich shale formations (i.e., Marcellus shale), storing significant amounts of natural gas, not only serve as a source for the gas but also form the reservoir. In addition, the depleted shale gas reservoirs have been proposed as candidates for geologic storage of CO₂ and potential enhanced gas recovery (Figure 1).

Cross-section illustrating CO2 injection and shale gas production, showing the ground water aquifer, confining zones, shale gas production zone, tight carbonates, and a deeper sequestration zone within an unconventional shale reservoir — Figure 1. CO2 injection and shale gas production. Source: Clean Air Task Force.

Elemental analysis of shale rocks is of interest because: 1) both CO₂ and natural gas (CH₄) adsorption/desorption seem to be correlated with the mineral composition of the rocks; 2) the rocks that contain higher amounts of carbon contents (organic material) have greater ability to generate natural gas and potentially a greater capacity of CO₂ storage; and 3) environmental issues associated with shale retorting require substantial monitoring and control of waste products.

Utilization of LIBS for elemental analysis of shale rocks is advantageous because it enables a rapid in situ analysis with little or no sample preparation and can perform multi-element analysis including total carbon.

Measurements were performed on pressed pellets of Marcellus shale samples using the J200 LIBS Instrument (EC model). The elements of interest (Al, Ca, K, Ti, Na, Si, and C) were spectrally resolved (Figure 2).

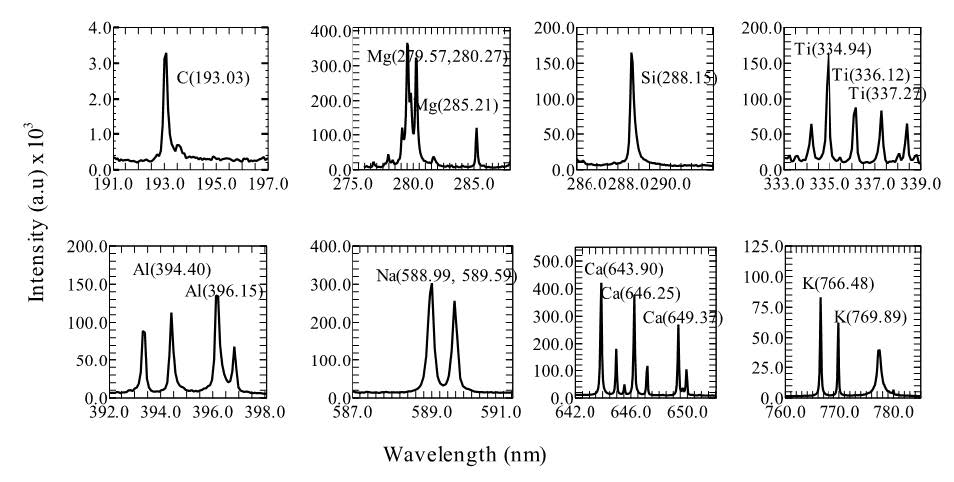

Eight LIBS emission spectra showing the major elements found in Marcellus shale samples: C at 193.03 nm, Mg at 279.57, 280.27 and 285.21 nm, Si at 288.15 nm, Ti at 334.94, 336.12 and 337.27 nm, Al at 394.40 and 396.15 nm, Na at 588.99 and 589.59 nm, Ca at 643.90, 646.25 and 649.37 nm, and K at 766.48 and 769.89 nm — Figure 2. Major elements found in Marcellus shale samples (Al, Ca, K, Ti, Na, Mg, Si, and C).

Figure 3 displays the calibration curves of C, Al, Mg, Ti, Ca and Si with outliers, obtained by simple linear regression of the selected analyte lines.

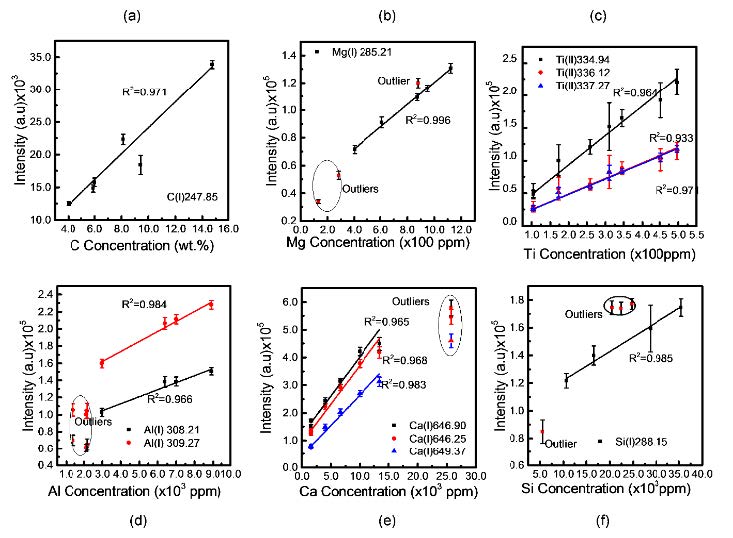

Six calibration curves from simple linear regression of selected analyte lines: C(I) 247.85 with R-squared 0.971, Mg(I) 285.21 with R-squared 0.996, three Ti lines with R-squared up to 0.964, two Al lines with R-squared up to 0.984, three Ca lines with R-squared up to 0.983, and Si(I) 288.15 with R-squared 0.985, several showing labeled outliers — Figure 3. Simple linear regression of calibration curves of selected analyte lines.

Figure 4 shows that the outliers are associated with the influence of other elements, notably Mg and Ti. As for Ca, it is probably related to its high concentration. The limits of detection (LOD) obtained from the above calibration curves for Si, Al, Ti, Mg and Ca are 60.9, 33.0, 15.6, 4.2 and 0.03 ppm, respectively, while it is 0.5 wt% for carbon.

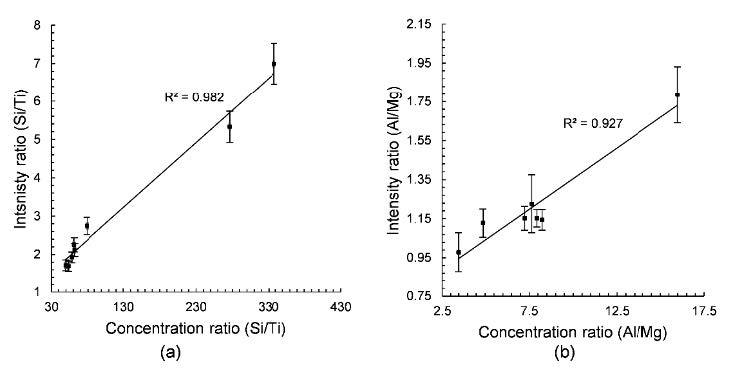

Two calibration curves using internal standardization: the intensity ratio Si/Ti versus concentration ratio Si/Ti with R-squared 0.982, and the intensity ratio Al/Mg versus concentration ratio Al/Mg with R-squared 0.927 — Figure 4. Calibration curves with internal standardization.

In conclusion, LIBS can provide a rapid analysis of shale samples and can potentially benefit depleted gas shale carbon storage research.
