Mapping of Marcellus Shale Core Samples by LIBS

Applied Spectra's J200 LIBS instrument maps Marcellus shale core samples, delivering rapid multi-elemental analysis — including light elements — for unconventional reservoirs.

By Jinesh Jain and Dustin McIntyre, National Energy Technology Laboratory · GeoChemistry

There are numerous shale formations world-wide that have oil and natural gas trapped within the tiny pore spaces of the shale and are considered the largest natural gas deposits. These formations known as “unconventional shale reservoirs” are, therefore, being actively evaluated for their potentially large hydrocarbon reserves. Since the gas capacity of the formations can be correlated with the inorganic and organic constituents of the shale, it is critical to understand the mineralogy and overall chemical constituency of these minerals. A physical and chemical correlation between metals and organic materials can be used to determine the amount of natural gas present in the shale rocks.

Geologic cross-section from the U.S. Energy Information Administration and U.S. Geological Survey showing land surface, coalbed methane, conventional gas, conventional oil, sandstone, tight sand gas, and oil- or gas-rich shale reached by vertical and horizontal wells — Sources: U.S. Energy Information Administration and U.S. Geological Survey.

The knowledge of mineralogy and geochemistry of the shale can not only predict potential drilling problems, but allow engineering and production decisions in the reservoirs, which are crucial factors that influence the decisions about drilling locations. Currently used analytical techniques for shale core logging/mapping are unable to measure all the required elements simultaneously.

Using LIBS (Laser-Induced Breakdown Spectroscopy) for shale core analysis is advantageous because it enables a rapid in situ analysis with little or no sample preparation and can provide multi-elemental analysis including C, H, N, O of a given sample.

Shale samples taken from a Marcellus gas well at depths ranging from 7498-7551 feet were analyzed using Applied Spectra, Inc.'s J200 LIBS instrument. The instrument utilized a 266 nm Nd:YAG nanosecond pulse duration laser and an 81 x 81 grid pattern that covered an 8 x 8 mm area. The data collected for Al, Ca, Fe, Mg, Si, C, H, and O from these experiments were used to construct 2D elemental maps for each sample. The representative data for Al are shown in Fig 1.

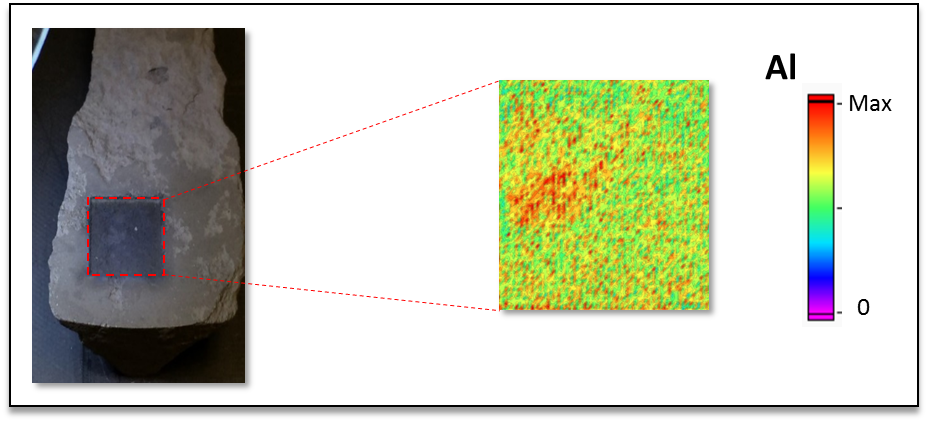

A Marcellus shale core sample with a red dashed box marking the analyzed region, an enlarged two-dimensional LIBS elemental map of aluminum for that region, and an Al intensity color scale running from 0 to maximum — Figure 1

Samples taken from various depths of Marcellus shale wells were also analyzed for all the above elements. A depth comparison of two samples for C and H is presented in Fig 2.

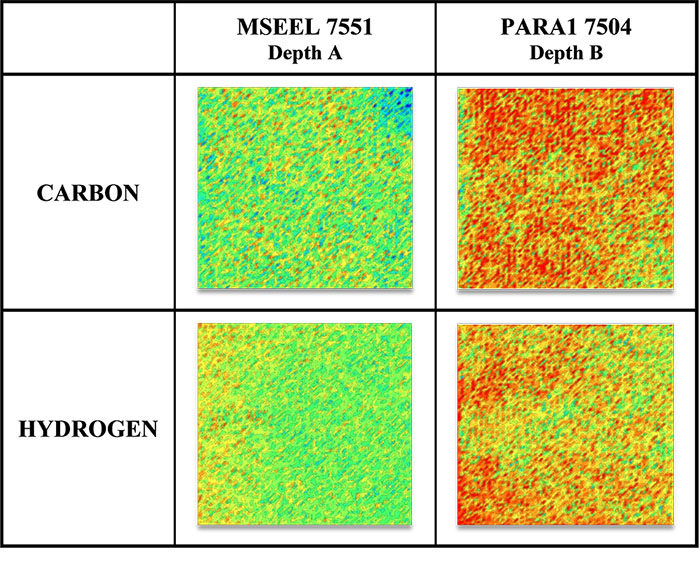

Two-dimensional LIBS elemental maps comparing carbon and hydrogen for samples MSEEL 7551 at depth A and PARA1 7504 at depth B, with the depth B sample showing higher carbon and hydrogen intensity — Figure 2

The samples retrieved from depth B are enriched in both C and H as compared to sample A. This study shows how the spatial elemental (including C and H) composition varies as a function of the sample depth and location and illustrates the benefits of LIBS over existing analytical techniques. The data can also be utilized for quantifying these elements in shale (Table-1).

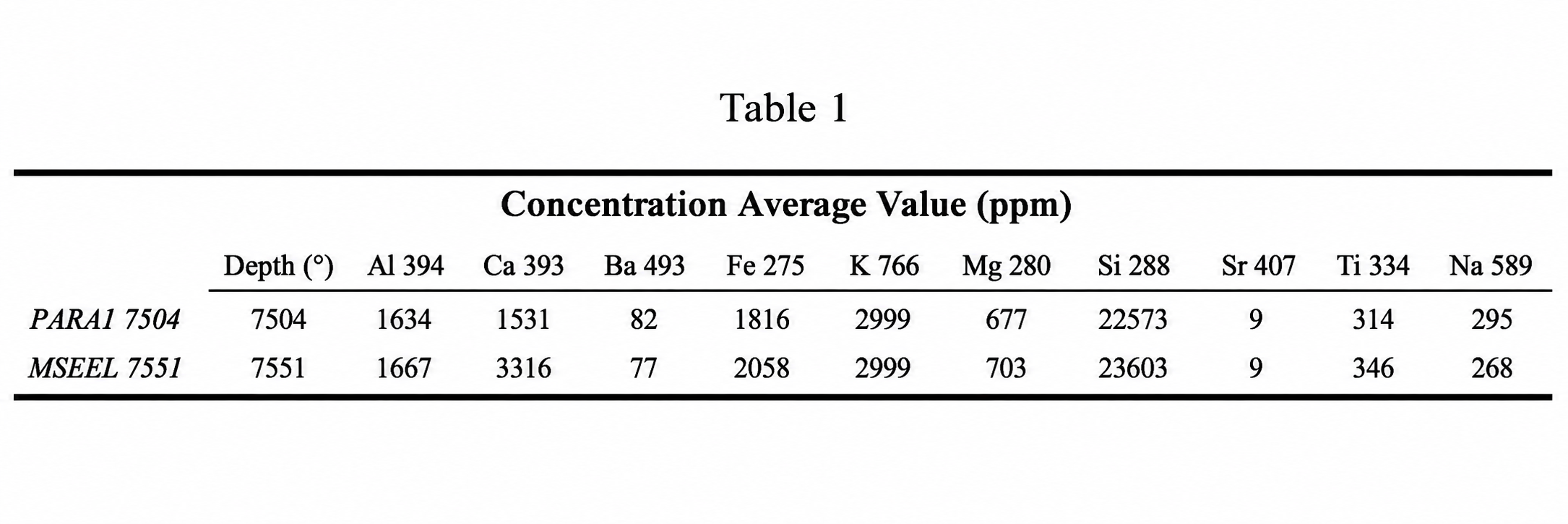

Table 1 listing average concentration values in ppm for samples PARA1 7504 and MSEEL 7551 across the elements Al, Ca, Ba, Fe, K, Mg, Si, Sr, Ti, and Na at their respective depths — Table 1
